Weewooday 2 Sets for Camera Module 5MP OV5647 1080P Video Webcam Sensor Infrared Night Camera Module Compatible with Raspberry Pi B/B+ A+ RPi 4/3/ 2/1/ Zero/Zero with FFC Cable (Adjustable Focus)
Product details
| Management number | 217000592 | Release Date | 2026/04/19 | List Price | $9.20 | Model Number | 217000592 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

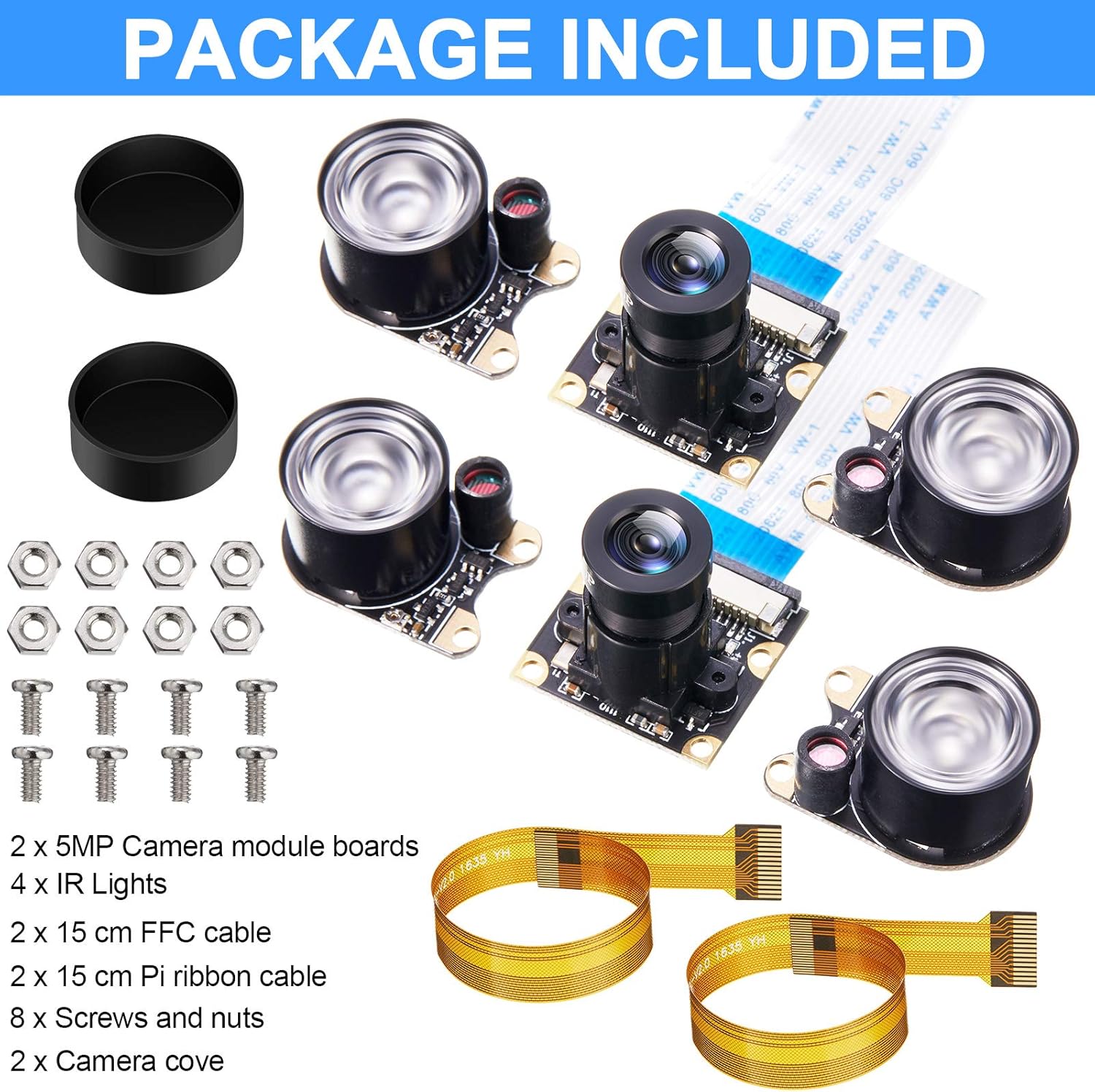

Features:Compatible with Raspberry Pi model B/B+ A+ RPi 4/ 3/ 2/ 1 with the FFC cable.Compatible with Raspberry Pi Zero/ Zero with the FPC cable.Support shooting 2592 x 1944 pixel static image and recording 1080p@30fps, 720p@60fps and 640 x 480p 60/90 video.Comes with 2 infrared fill lights to support infrared night vision to take picture at night.Support focal length adjustment to fit the distance of the object.Support a power output of 3.3 volt.4 Screw holes measuring 26.5 x 32 mm for installation.Specifications:Resolution: 5 megapixelsSensor: OV5647CMOS Size: 1/4 inchAperture(F): 1.2Focal length: 3.6 mm (adjustable)Field of view (FOV): 75.5 degreesSensor resolution: 1080pPackage included:2 x 5MP Camera module boards4 x IR Lights2 x 15 cm FFC cable2 x 15 cm Pi ribbon cable8 x Screws and nutsNote:The mention of these brands and any related model above is only for purposes of expressing compatibility, not for trademark, our trademark is Weewooday.
- Camera parameters: the camera has a 5MP OV5647 1080P webcam sensor, featuring a high pixel of 5 megapixels; The camera not only supports shooting 2592 x 1944 pixel static images but also supports recording 1080p@30fps, 720p@60fps and 640 x 480p 60/90 video
- Compatibility: this high-definition video camera is compatible with Raspberry Pi model B/B+ A+ RPi 4/ 3/ 2/ 1 with the FFC cable and compatible with Raspberry Pi Zero/ Zero W with the FPC cable
- CMOS sensor interface: the camera module adopts appropriative CMOS sensor interface (CSI), via the CSI bus; A higher bandwidth link that transmits 5 megapixels data from the camera back to the processor
- Infrared fill light: the camera is equipped with 2 infrared fill lights to solve the problem that the light is too weak to take photos at night; The brightness of infrared light will adjust automatically based on the dark of the circumstances
- Focus adjustment: the focal length of the camera can be adjusted depending on the distance of the shooting object, which is helpful for you to capture high-definition and beautiful images
| Brand | Weewooday |
|---|---|
| Color | Black |
| Features | Adjustable |
| Lens Type | Zoom |
| Focus Type | Manual Focus |
| Model Name | csi |
| File Format | MP4 |
| Form Factor | Compact |
| Sensor Type | CMOS |
| Manufacturer | Weewooday |
| Model Number | bf52788c-bc6d-4bed-8378-91d7ce46d16c |
| Camcorder Type | Video Camera |
| Shooting Modes | Night |
| Maximum Aperture | 1.2 f |
| Minimum Aperture | 3.6 Millimeters |
| Operating System | Linux |
| Video Resolution | 1080p, 480p, 720p |
| Flash Memory Type | Micro SD |
| Photo Sensor Size | 1/4-inch |
| Compatible Devices | Raspberry Pi B/B+ A+ RPi 4/3/2/1/Zero/Zero W |
| Image Aspect Ratio | 16:9 |
| Number of Speakers | 1 |
| Image stabilization | false |
| Maximum Focal Length | 32 Millimeters |
| Minimum Focal Length | 3.6 Millimeters |
| Video Capture Format | MP4 |
| Wireless Compability | Infrared |
| Compatible Processors | Broadcom BCM2835, Broadcom BCM2836, Broadcom BCM2837, Broadcom BCM2711 |
| Are Batteries Included | No |
| Supported Audio Format | AAC, MP3 |
| Supported Image Format | JPEG |
| Water Resistance Level | Not Water Resistant |
| White Balance Settings | Auto |
| Connectivity Technology | Infrared |
| Has Image Stabilization | No |
| Flash Memory Speed Class | 10 |
| Display Resolution Maximum | FHD |
| Effective Still Resolution | 5 MP |
| Effective Video Resolution | 1920 Pixels |
| Flash Memory Video Speed Class | V60 |
