Welding Rotary Table Welding Machine Positioner with 65mm Chuck (10KG) Rotary Welding Positioner 180mm Welding Rotary Table 0-90o for Cutting, Grinding, Assembly

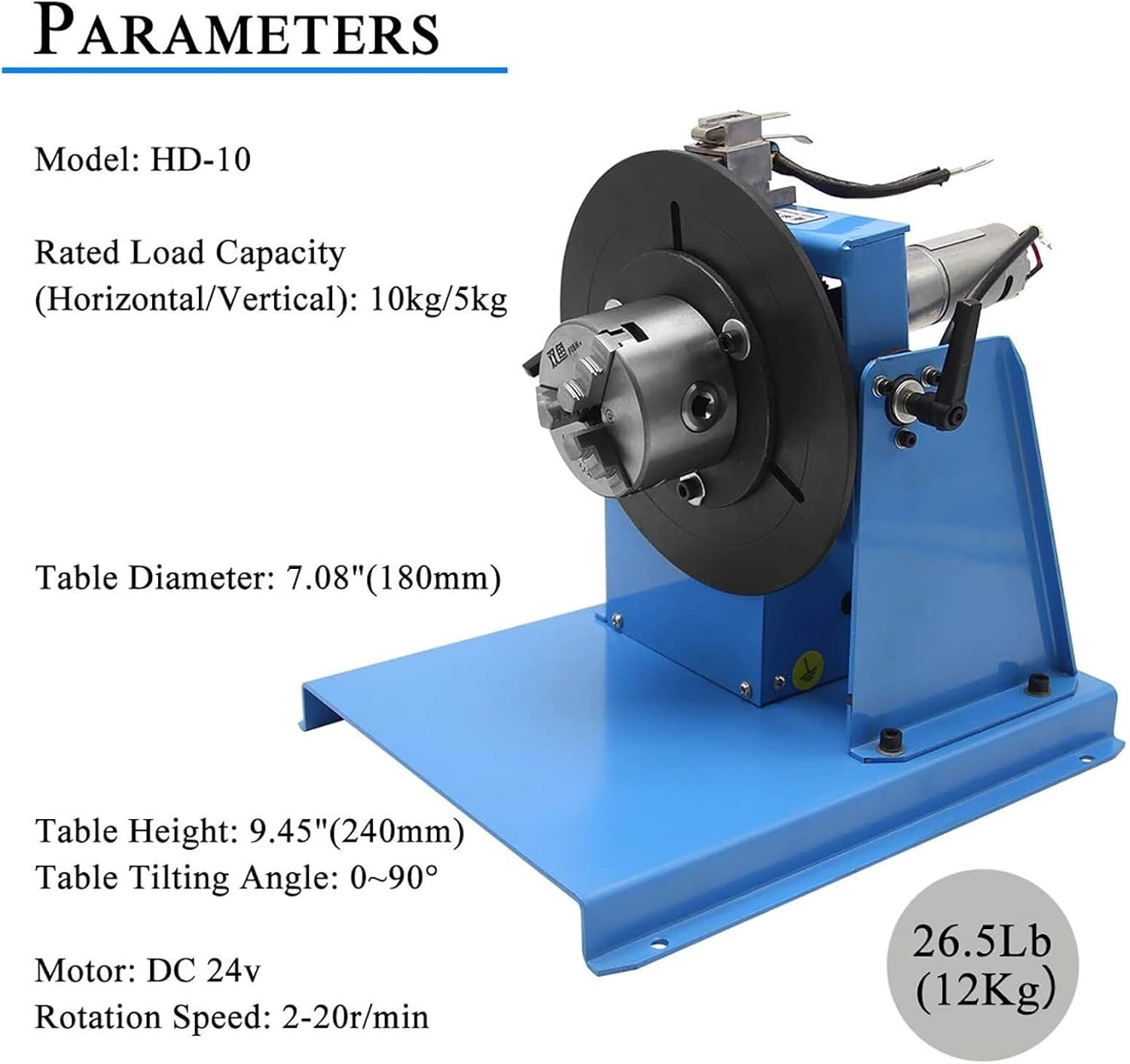

Input voltage: 110V/220VHorizontal load-bearing capacity: 10KGVertical load-bearing capacity: 5KGWorkbench tilt angle: 0-90°Workbench diameter: 180MMWorkbench height: 220MMWorkbench speed: 2-16 r/minRated welding current: 80ADrive motor: DC24V 20WWorkbench rotation angle: 0-90°Workbench flip: manualRotation motor: 15WDimensions: 370 * 270 * 215mmWeight: 10kg

• 【Widely used】Especially suitable for seam welding of flanges and steel pipes below 10KG. Can be used for circular welding, cutting, polishing, assembly, etc. Supports CO2 welding, MIG, MAG, TIG welding, etc. Can also be used for cutting, grinding, assembly, testing and other processes.
• 【Tiltable workbench】The welding positioner workbench can be tilted 0-90 degrees, and can be fixed at any angle using a tilt locking wrench; manual workbench flip, 18cm workbench, compatible with KC-65 or KC-80 chucks. BY series light positioner is mainly used for welding of circular welds.
• 【Smooth rotation】This rotary welding positioner is driven by a 20W high-quality DC motor and rotates smoothly; the speed is 2-16 rpm, and the knob can be adjusted steplessly. Driven by a high-quality DC motor, the workbench runs smoothly, the welding speed can be adjusted steplessly, the adjustment range is large, and the adjustment accuracy is high.
• 【Easy to use】Precise structure, light weight, easy and flexible operation. The device can be fixed on a workbench or special tooling to clamp the workpiece for manual welding, or it can be used with a welding machine to achieve automatic welding. It can also be used for cutting, grinding, assembly, testing and other processes.
• [High Precision] The main function of the device is to tilt and flip the workpiece so that the weld is in the best welding position such as horizontal and boat-shaped. The foot switch is used to control the rotation of the workbench, and the rotation control is convenient; the fixture and the workbench are connected by a simple mechanical method, with high positioning accuracy; the anti-electromagnetic design effectively reduces the impact of high-frequency interference on TIG welding.
