YB27VA DC 8-100V Digital Voltmeter Ammeter Volt Amp Meter LED Voltage Current Tester Milliammeter 9.99mA 999mA 1Pcs(Color:White (red-red),Size:100A(75mV))
Product details
| Management number | 213683429 | Release Date | 2026/04/12 | List Price | $13.72 | Model Number | 213683429 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

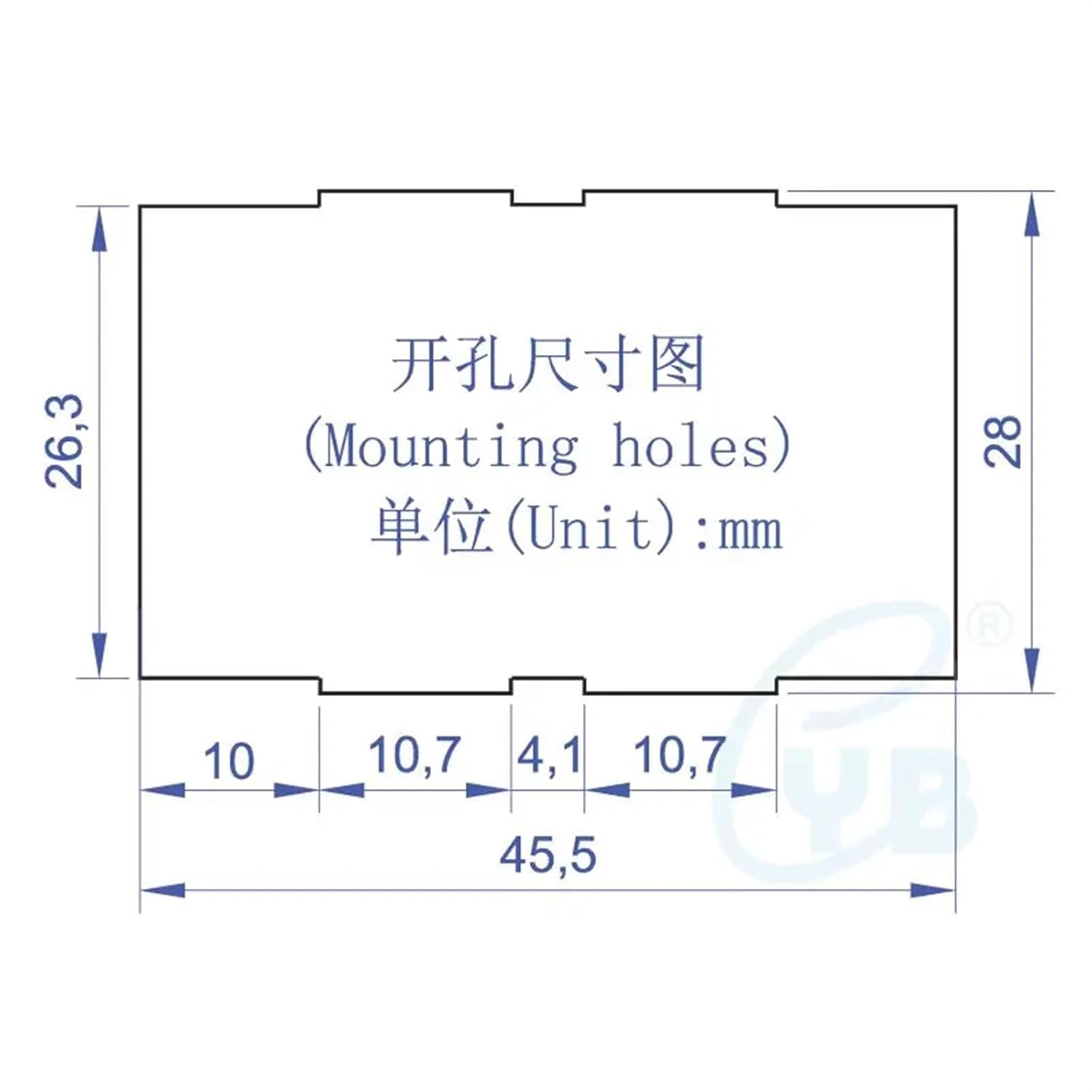

Gauges************************************************************************************************************************************************************************YB27VA DC 8-100V Digital Voltmeter Ammeter Volt Amp Meter LED Voltage Current Tester Voltage Panel Meter 3-wire 9.99mA 999mA 5A 10A 20A 50A 100A 1000AAttention:1,9.99mA, 99.9mA, 999mA, 2A, 5A, 10A, 20A direct test, the shunt is built in.2,More than 10A(except for 20A direct test) ,you must use a shunt to work,even 0.1A, or it will be burnt.3,More than 10A(except for 20A direct test) ,the shunt is not built in,you need to buy it separately. (1)If you have a shunt , please note your shunt specification (standard is 75mV, if no notes, all according to 75mV delivery) (2)If you don't have a shunt, please order the corresponding shunt, we will not notice at the time of shipment.Technical Parameters: Supply voltage:DC8 100V<;20mADisplay mode: 0.28 "LED, single color or double color:(red-red):Both voltage and current are red color(red-blue):Voltage is red,current is blue. Dimension:48*29*21mmMounting dimension: 45.5*26.5 mmMeasurement rate: 500mS / timeMeasurement accuracy: 1% ( 2 digits)
- Gauges
- Item weight: 0.11 pounds
| Color | White (red-red) |
|---|---|
| Model | VDPYZANC |
| Brand Name | VDPYZANC |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Manufacturer | VDPYZANC |
