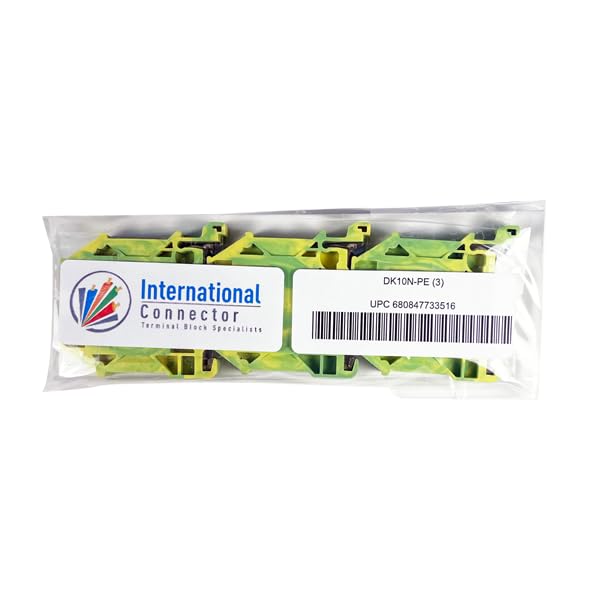

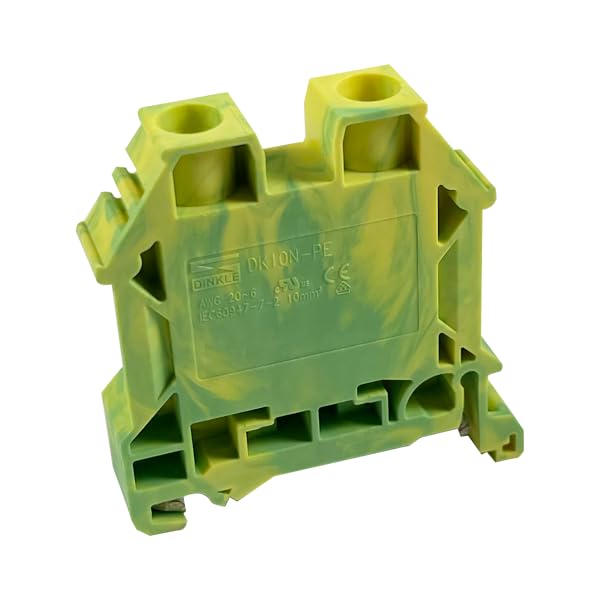

Dinkle DK10N-PE DIN Rail Terminal Ground Block Screw Type UL 6-16AWG, Pack of 3
Product details
| Management number | 218152677 | Release Date | 2026/05/03 | List Price | $8.40 | Model Number | 218152677 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Dinkle DK10N-PE has a compact design that saves wiring space. The high reliability and robust design adapts vibration and harsh thermal variation to prevent terminal connection fault. Conductor cross-section, solid(AWG/mm2): UL 16-6, IEC 0.5-10. Conductor cross-section, flexible(AWG/mm2): UL 16-6, IEC 0.5-10. Rated impulse withstand voltage: 8KV. Torque(N-m): 1.4. Screw: M4. Wire strip length: 12-14mm. Insulating material: PA. TxHxW(mm): 10 x 48.75 x 47.15. Jumper DSS35N-02P. Marking label TM50W.
- 6-16AWG
- Grounds to DIN Rail
- Metal Feet
| UPC | 680847733516 |
|---|---|
| Gauge | 6.0 |
| Model | DK10N-PE |
| Voltage | 8 Kilovolts |
| Brand Name | International Connector |
| Part Number | (3) DK10N-PE |
| Manufacturer | Dinkle |
| Material Type | Metal, Polyethylene |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Number Of Poles | 6 |
| Centerline Length | 10 Millimeters |
| Specification Met | VDE |
| Number Of Contacts | 6 |
| Included Components | Terminal Blocks |
| Number of Positions | 6 |
| Item Dimensions W x H | 1.86"W x 1.92"H |
